Most modern vehicles feature electric window lifters (power windows) alongside manual lifters. Electric window lifters are controlled using buttons in door trim panels. For central control, there is usually...
Window lifters in new vehicles are reliable products. Should a fault occur, it usually affects the mechanics, which can be replaced separately from the engine.
Most modern vehicles feature electric window lifters (power windows) alongside manual lifters. Electric window lifters are controlled using buttons in door trim panels. For central control, there is usually a panel featuring buttons for all electric window lifters in the vehicle in the driver's door. Occasionally there are also controls located in the center console.
Electric window lifters on more recent vehicles are fitted with what are known as convenience functions. These include:
Automatic full up or down of the window lifter when the switch is pressed once
Linking of the window lifter function to the central locking so that when the car is locked, all of the windows that were previously open close automatically.
Safety functions such as "anti-trap protection"
functional principles of window lifters
Window lifters work according to four functional principles:

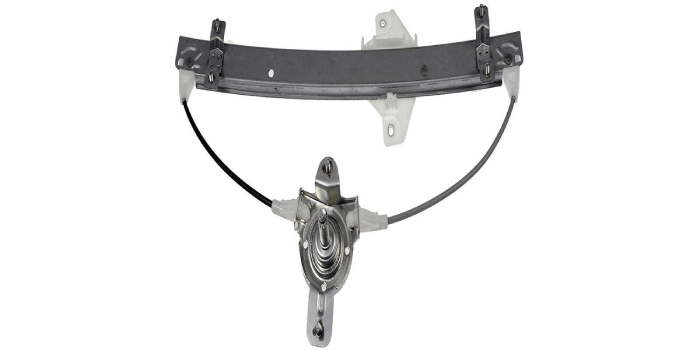

1. Cable window lifters
This technology is the most commonly used. A cable drum is moved by an electric motor with a worm gear/spur gear. Two ends of a steel cable are fastened to this drum so that when the drum rotates one end is wound in and the other end is let out. The pull cable pulls the window fastening, which runs in a guide rail, up or down via a Bowden cable and a deflection roller. The end of the cable without pull is wound back onto the drum in parallel.
2. Dual-cable window lifters
The operating principle is the same as that of cable window lifters but this system is fitted with a second guide rail. The dual-cable window lifter is the latest and most innovative technology.
3. Scissor system
With this principle, the window is moved by two lifting arms arranged like scissors which are powered by servomotors. When the scissor arms are "closed", the window is pushed to the highest position. When the "scissors" open, the window slides down.
4. Cable system
This system is primarily used for industrial vehicles and reverse windows. A single cable moved by a central motor sets the position of the window.
