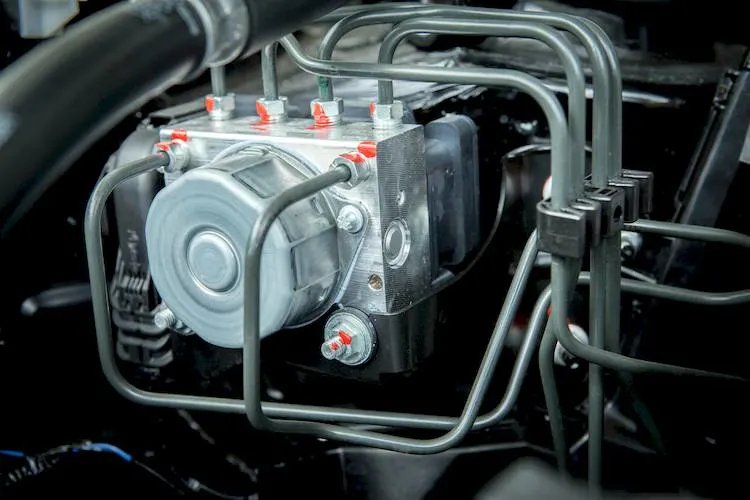

What is an ABS Control Module

A vehicle's anti-lock braking system's control module, or abs, is a microprocessor that performs diagnostic tests and analyzes data from wheel-speed sensors and the hydraulic braking system to decide when to release braking pressure at a wheel that is ready to lock up and begin sliding. Unless you're a talented driver who can control the brake pressure in a stressed scenario and free the wheels, steering will be difficult in a car without abs. Abs, on the other hand, achieves that without requiring any talent or poise on your part.

Since electronic stability control has been necessary since 2012, anti-lock brakes, which have been available since the 1980s, are a standard feature on all cars with model years 2012 and later. Stability control intervenes to stop skids even when the brakes are not used, and anti-lock systems prevent skids when using the brakes. Every time a car is started, an abs warning light is designed to illuminate for a short period of time. If the light illuminates while the car is in motion, however, something has gone wrong with the control module, a wheel sensor, or another component. When the warning light is on, the brakes should still function correctly on many cars, but the anti-lock feature won't.

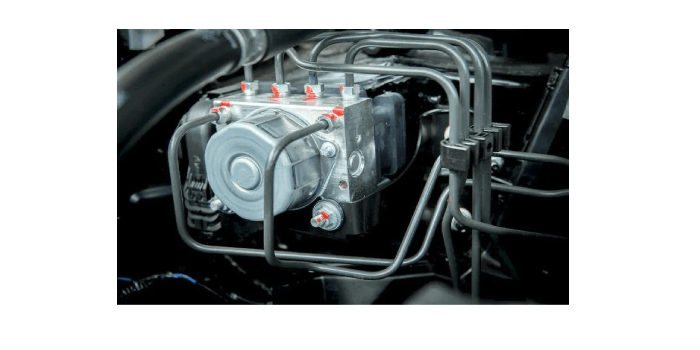

ABS Control Module
Get Free Quote
(469) 868-2227

Components of an ABS System

Wheel speed sensors, hydraulic valves, a pump, and an abs controller—also referred to as an abs module or abs ecu—are the four major parts of an abs system.

Wheel speed sensors: to measure a wheel's acceleration or deceleration, a wheel speed sensor is employed. These sensors make use of an abs ring or reluctor ring that rotates together with the wheel or differential and produces a magnetic field surrounding the wheel speed sensor. This magnetic field in turn causes the sensor to produce a voltage.

There is a hydraulic valve in each brake line that the abs module regulates. The valve may have three settings on various configurations:

Hydraulic valve: in position one: the valve is open, allowing all brake master cylinder pressure to go straight to the brake.

Position two: when the valve is closed, the brake is isolated from the master cylinder and the brake line is blocked. By doing this, the pressure is kept from increasing more if the driver applies more force to the brake pedal.

Three: the valve partially opens, letting some of the brake's pressure out.

Clogged valves are the main cause of problems with the valve system. The system will not be able to regulate the valves and manage the pressure provided to the brakes because a clogged, inoperable valve will not be able to open, close, or change position.

Abs pump: after the hydraulic valves have released the pressure, the pump in the abs unit is utilized to return it to the hydraulic brakes. The abs ecu module processes data from the wheel speed sensors, and if a wheel slip is detected, the module will signal for the valve to be opened to prevent the wheel slide. The pump is used to replenish the lost pressure to the braking system once the valve is opened and the pressure is lost. The pump's state will be modulated by the abs controller to produce the required pressure and lessen sliding.

Abs ECU / ABS Module / ABS Controller: the abs controller, sometimes referred to as an abs ecu, takes input signals from each wheel speed sensor and can analyze the data to determine whether any particular wheel is slipping. The controller will restrict the braking force (ebd) and transmit the signal to activate the hydraulic brake valves on and off if a wheel spin is detected and a wheel loses traction.

Get Free Quote
(469) 868-2227

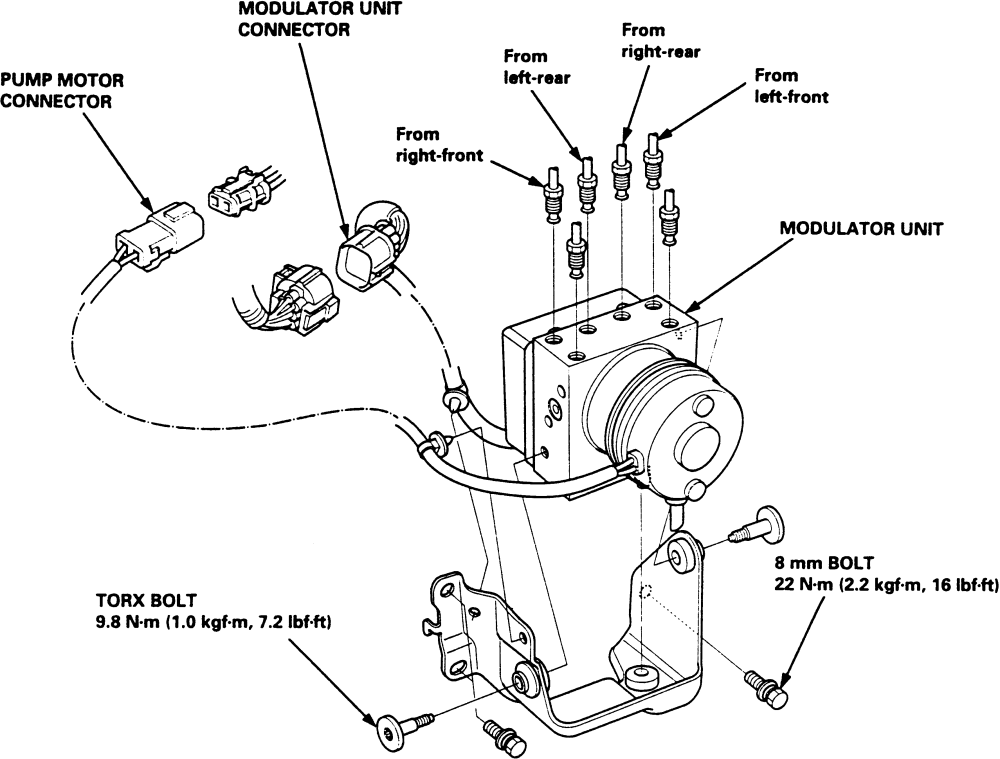

How to replace an ABS Module?

If your car is experiencing any braking issues, you may need to replace the abs module. A defective abs module can cause your vehicle to hydroplane during heavy braking. The abs system is a crucial safety feature. It manages hydraulic pressure at the wheels to ensure that they remain stable during braking. This prevents the wheels from locking up in situations like harsh weather conditions or when you are driving on slippery roads.

  • The abs control module is a microprocessor that monitors several sensors. These sensors detect the speed of the wheels and send signals to the module to keep the brakes in operation.
  • Several vehicles share the abs control unit with their traction control systems. When a wheel loses its grip, the control module reduces the amount of hydraulic pressure that the brakes use.
  • The abs module is usually located in the engine compartment. It should be easy to remove. To make the process easier, make sure you have all the tools needed. Some modules will need to be programmed before installation.
  • When you are replacing the abs module, you will need a jack stand to raise the vehicle. Make sure to clean the mounting surfaces and tighten the bolts.
  • You may also want to purchase a scan tool to read your vehicle's codes. Usually, the best option is to get a professional-grade scan tool.
  • One other thing to look for is the speedometer. If it's displaying low voltage, your vehicle is probably having problems.

These parts make up the most typical configuration:

Abs sensor: The abs wheel speed sensor measures the rotational speed of a wheel and transmits that data to the abs control module.

Abs module: A microprocessor known as the abs control module manages the abs modulator and performs diagnostic tests on the anti-lock braking system of a car.

Abs modulator: The Hydraulic Control Unit (hcu), abs pump, and abs motor are further names for the abs modulator.

Other names of ABS Control Module

The control module is placed and positioned in the engine compartment of the majority of popular automotive designs. It can occasionally be found in the frame rail on the car's left side. It has several other names, including:

  • Abs control unit
  • Abs controller
  • Abs unit
  • Electronic control unit (ECU)
