Rack and pinion steering use a gear-set to alter the circular motion of the steering wheel into the linear motion needed to rotate the wheels. It also provides a gear reduction, so turning the wheels is more leisurely.
Rack and pinion steering use a gear-set to convert the circular motion of the steering wheel into the linear motion required to turn the wheels. It also provides a gear reduction, so turning the wheels is easier.

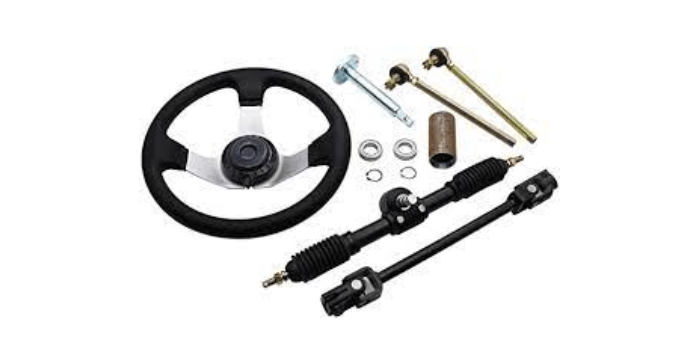

It works by enclosing the rack and pinion gear-set in a metal tube, with each end of the rack sticking out from the tube and connected to an axial rod. The pinion gear is attached to the steering shaft so that when the steering wheel is turned, the gear spins, moving the rack. The axial rod at each end of the rack connects to the tie rod end, which is attached to the spindle.
Most cars need three to four complete turns of the steering wheel to go from lock to lock (from far right to far left). The steering ratio shows you how far to turn the steering wheel for the wheels to turn a certain amount. A higher ratio means you need to turn the steering wheel more to turn the wheels a certain amount and lower ratios give the steering a quicker response.
Some cars use variable-ratio steering. This rack and pinion steering system use a different number of teeth per cm (tooth pitch) in the center than at the ends. The result is the steering is more sensitive when it is turned towards the lock than when it is close to its central position, making the car more maneuverable. We sell great quality used racks and pinion without breaking your bank for Cars, Small Trucks, and SUVs.
End take-off – the tie rods are attached to the end of the steering rack via the inner axial rods.
Center take-off – bolts attach the tie rods to the center of the steering rack.
When a rack and pinion system is connected to a power steering system, the design changes slightly. A cylinder with a piston in the middle is placed in the rack. There is fluid on both sides of the piston. When pressure is placed on the fluid on one side of the piston, it forces the piston to move, which turns the rack and assists with steering.
As steering is essential for controlling your car, it’s important to diagnose and repair any steering issues as quickly as possible. Typical steering problems include:
Very tight steering wheel
If it is becoming more difficult to turn your steering wheel, it’s a sign that there’s probably a problem either with your steering rack or a lack of pressure from the power steering unit. The solution could be as simple as adding more power steering fluid, but it’s best to get it checked.
Leaking power steering fluid
Power steering fluid levels only decrease and result in tight steering if there is a leak. This isn’t a big problem, however, the consequences for leaving it too long include causing the steering gearbox and steering rack to overheat or gears to break. It is recommended to get this fixed when it is a simple (and cheap) task. Click here for more information about the causes of these leaks
Grinding noise when steering
A grinding noise from your steering gearbox comes from metal-on-metal contact, suggesting a lack of lubrication. You’ll be able to hear it clearly when you turn either left or right. Ask your mechanic to take a look at the problem, as your steering gearbox could need replacing.
Burning oil smell
Power steering fluid smells like burning oil, so if you smell it when driving it’s a sign that the steering gearbox is too hot. It’s best to stop your car as soon as possible and get the problem looked at. Driving with an overheated steering gearbox can result in fire.
Ball Joints in Steering System
Ball joints are made of a bearing stud and socket that are attached very closely inside a greased casing. They link the control arm to the steering knuckles and permit smooth and solid movement in the suspension.
