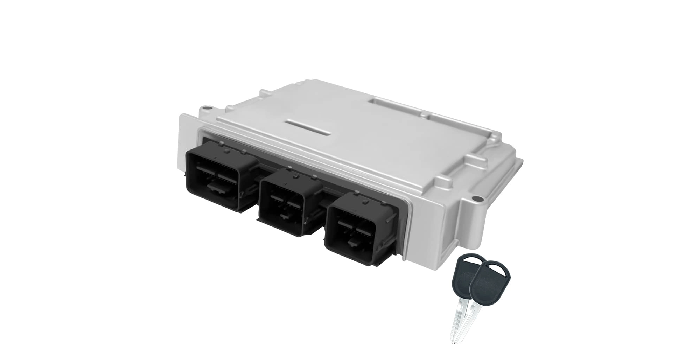

Like we said, the car’s engine computer basically monitors and controls all essential vehicle functions—keeping tabs on everything and making sure it’s all running smoothly. But exactly what is this computer doing in your engine?
Put simply, it is constantly receiving information from a variety sensors positioned throughout your engine so it can do things like:
Regulate fuel injectors
Control the spark plugs
Adapt the idle speed
Notify the driver of a problem with the “Check Engine” light
Monitor the ignition system
Deliver electrical commands to the transmission and camshaft systems
The computer is able to monitor these functions with information from the oxygen sensor, air pressure sensor, air temperature sensor, throttle position sensor, and the knock sensor, among others—all to get the best performance possible out of your engine while keeping emissions low.
What’s more is that these engine computers are also self-learning devices that have been programmed to adjust for driving conditions and the habits of the driver. This means that the computer will make small adjustments to different parts of the engine and different systems in order to adapt to varying environmental conditions and to the way you, specifically, drive your car.
Doing things like making gear shifting smoother by backing off the throttle when it decides to shift, or performing millions of calculations and solving equations to decide on the best spark timing and determining how long the fuel injector is open, the computer synchronizes the functions of each system for better power delivery, fuel economy, and overall performance.
In a nutshell, your car’s computer both independently controls and coordinates the different parts of your engine so that they work together in the most efficient way, given the constantly changing environmental and driving conditions.
So now that we have a basic understanding of what the computer in your car does, how does it actually work?
Like all modern computers, the one in your car depends on tons (in modern cars up to 50) of microprocessors to give it the computing power it needs to control all these functions. And as cars get more and more advanced, the number of microprocessors required increases. Innovations and developments in newer cars that require an increase in microprocessors include:
The need for sophisticated engine controls to meet emissions and fuel-economy standards
Simplification of the manufacture and design of cars
Reduction of the amount of wiring in cars
New safety features
New comfort and convenience features
A car computer today typically contains a 32-bit, 40-MHz processor. Although that might not seem like much, your car is running much more efficient code than the processor in the computer you’re carrying in your backpack. The code in an average car computer takes up less than 1 megabyte (MB) of memory. By comparison, you probably have at least 2 gigabytes (GB) of programs on your computer — that’s 2,000 times the amount in your car.
In addition to the processor, the engine computer contains several other components on a multi-level circuit board. These include:
Analog-to-digital converters – These devices read the outputs of some of the sensors in the car, such as the oxygen sensor. The processor only understands digital numbers, so the analog-to-digital converter changes this voltage into a 10-bit digital number.
High-level digital outputs – On many modern cars, the ECU (engine computer) fires the spark plugs, opens and closes the fuel injectors and turns the cooling fan on and off. All of these tasks require digital outputs that act like a relay circuit.
Digital-to-analog converters – Sometimes the ECU has to provide an analog voltage output to drive some engine components. Since the processor on the ECU is a digital device, it needs a component that can convert the digital number into an analog voltage.
Signal conditioners – Sometimes the inputs or outputs need to be adjusted before they are read. For instance, the analog-to-digital converter that reads the voltage from the oxygen sensor might be set up to read a 0- to 5-V signal, but the oxygen sensor outputs a 0- to 1.1-V signal. A signal conditioner is a circuit that adjusts the level of the signals coming in or out.
Communication chips – These chips implement the various communications standards that are used on cars. There are several standards used, but the one that is starting to dominate in-car communications is called CAN (controller-area networking).
Put simply, your car’s engine computer contains its processor(s) and then the above components to streamline communication between the processor and the individual engine systems so the computer can properly monitor and control them.
